Increased profits – use bulk oil rather than 20L pails
Improved field servicing efficiency – reduced servicing time
Multiple services per trip
Reduced mess from waste oil handling
Reduced issues with overweight service vehicles.
Ideal for servicing of large machinery, easily transported on a trailer, truck or ute deck for ease of access to your machinery. Simply connect your compressed air supply for operation of equipment.

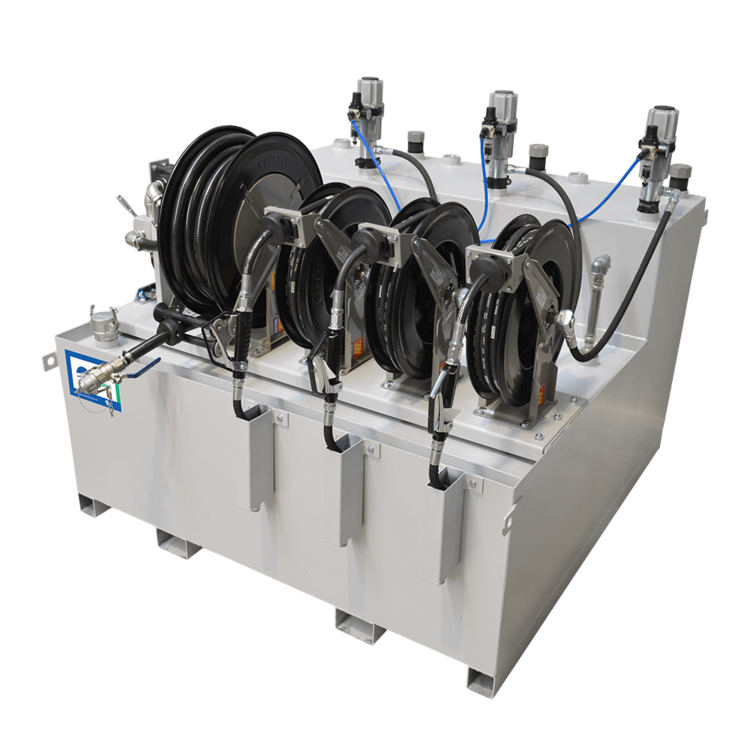

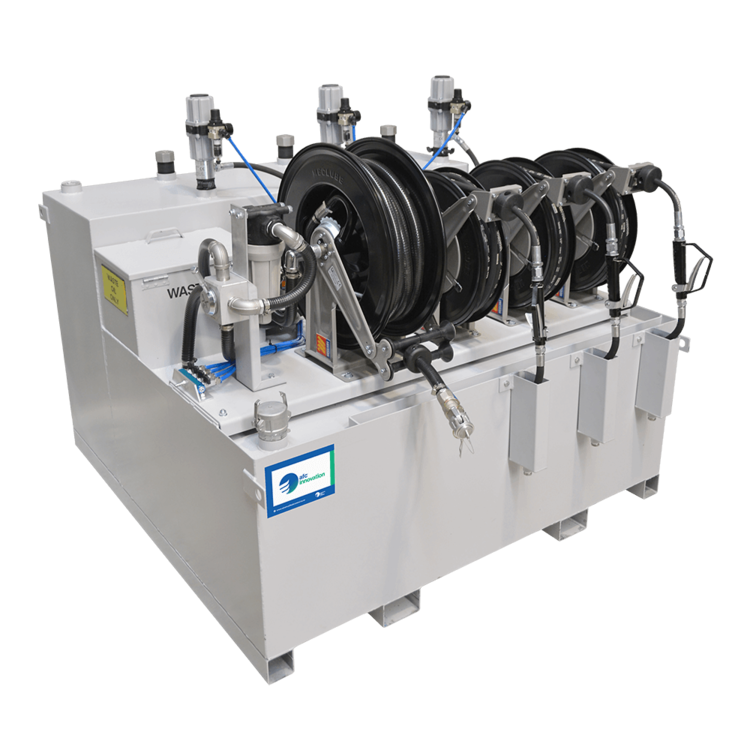

Specifications
3x clean oil tanks

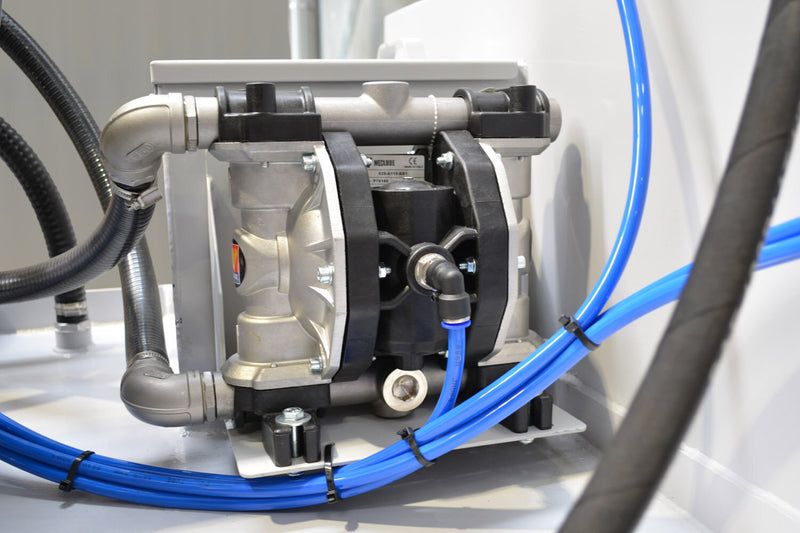

3x heavy duty oil pumps

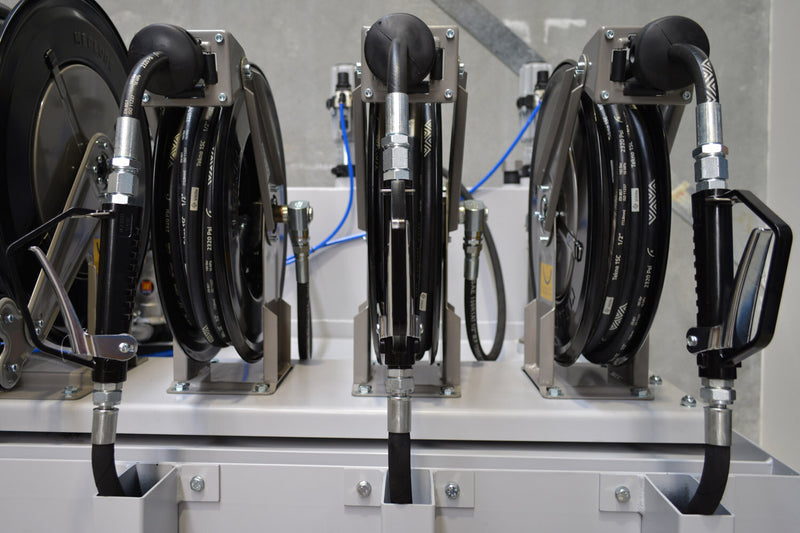

3x heavy duty oil hose reels
3x oil control valves
1x retractable waste oil suction hose reel
Large waste oil tank capacity

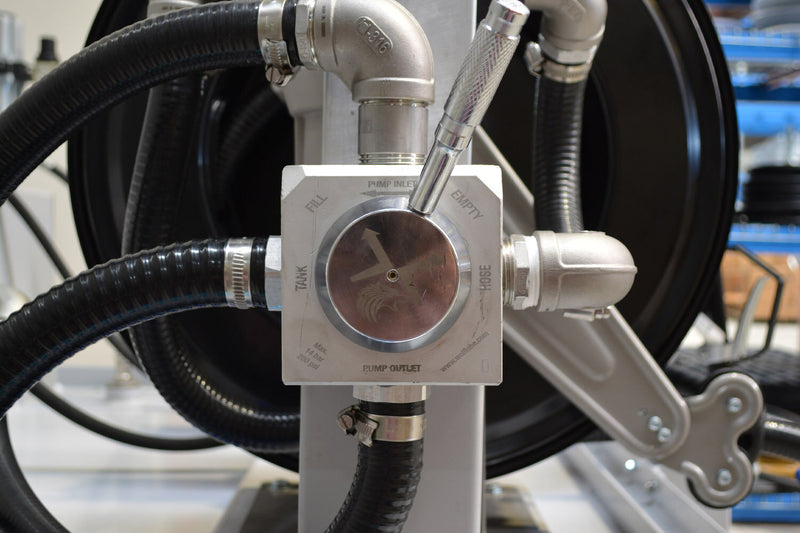

Waste oil vacuum pump with 4-way evacuation valve for waste oil removal
Enclosed waste oil filling box with filter drain

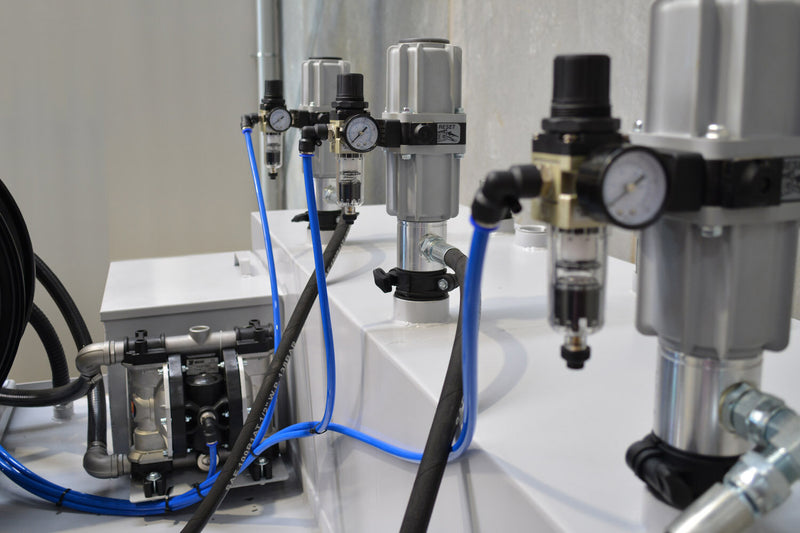

Air distribution manifold and connections for compressed air feed to pumps.
Lube Skid Dimensions: 1500mm(L) x 1500mm(W) x 1400mm(H)
Tare Weight: 520kg
Clean Oil Tank Capacity: 220 Litres x3
Clean Oil Reel Size: 15m x 1/2”
Waste Oil Tank Capacity: 700 Litres
Waste Oil Reel Size: 12m x 1"
